Portable Scoreboards

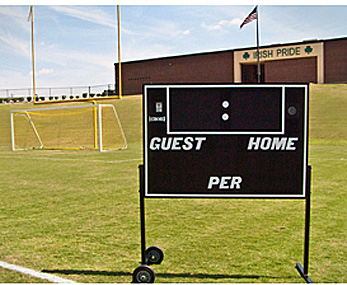

Electro-Mech has a long history of providing excellent scoreboards for permanent installations. More and more customers have requested options to provide the quality of an Electro-Mech product in a package that can be moved around. Our solution is a new line of slimmed down scoreboards that can be purchased with our optional “T-Cart” leg kit.

These new designs use the same reliable technology that you will find in our permanent outdoor scoreboards models — including super-bright LED displays that are coated to withstand harsh weather conditions. The cabinets are still constructed of rust-free aluminum, but with a trimmed down shape (only 4 inches thick) and lighter components. The entire cabinet is coated with our automotive grade baked on paint, so it looks great from every angle.

Check out these portable models:

• Model LX1020 (5 ft × 3 ft)


  – Baseball
  – Softball

• Model LX1320 (5 ft × 4 ft)


  – Baseball
  – Softball
  – Football
  – Soccer

• Model LX3120 (5 ft × 3-1/2 ft)


  – Football

• Model LX6320 (5 ft × 3-1/2 ft)


  – Soccer
  – Lacrosse
  – Field Sports
  – Basketball

• Model LX6324 (5 ft × 3-1/2 ft)


  – Baseball
  – Football
  – Soccer

• Model LX7520 (4 ft × 3 ft)

  >
  – Practice Segment Timer

• Model LX3030 (4 ft × 4 ft)


  – Football Play Clocks

• Model LX3024 (3-1/2 ft × 3-1/2 ft)


  – Football Play Clocks

• Model LX3018 (3 ft × 3 ft)


  – Football Play Clocks

Portable Leg Kit

The portable scoreboard models shown above are all compatible with our “T-Cart” leg kit. The removable legs in this kit bolt to each side of the scoreboard cabinet. One of the legs includes a pair of rubberized wheels that allows you to roll the scoreboard over grass, dirt, and other tricky surfaces. The other leg features a 30-inch wide foot for stability.

Easy Assembly

The T-Cart Leg Kit includes:

• Leg assembly with wheels
• Leg assembly with foot
• Four bolts

First, attach the Leg/Foot Assembly (the one without wheels) to one side of the scoreboard cabinet, using two bolts.

A torque of 30 ft. lbs. is sufficient to keep the legs in place.

Next, have one person lift the scoreboard cabinet into position using the attached leg assembly as a pivot while a second person attaches the Leg/Wheel assembly to the other side of the scoreboard cabinet.

Use the remaining two bolts to secure the Leg/Wheel assembly. You may orient the wheels to face in or out.

After a final check on all four bolts, use the leg assembly without wheels as a handle to guide your scoreboard into its final position.
